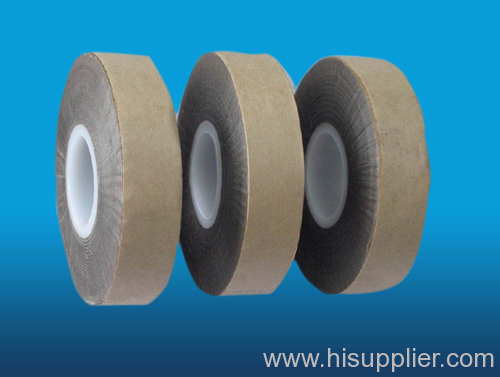

electric machine mica tape is built up with mica as base material and electrical-use alkali-free glass-cloth, polyester or polyemide film as reinforcing material, bonded by binder and formed a tape-like insulation material. It is perfectly flexible under the normal temperature and after reeling on the coil of electrical machinery, may be solidified and has a thin insulation thickness and excellent electrical and mechanical strength.
Type Designation
|
Normal thickness
(mm)
|
Mica content
(%)
|
Binder content(%)
|
Volatile
(%)
|
Dielectric
strength
(MV/m)
|
Tensile
strenght
(N/10mm)
|
RN436-1A epoxy polyester film mica tape | 0.14 | ≥37 | 26~34 | ≤4.0 | ≥40 | ≥65 |
RN436-1B epoxy polyester film mica tape | 0.14 | ≥37 | 29~37 | ≤4.0 | ≥40 | ≥65 |
RN437-1 epoxy polyester film mica tape | 0.11 | ≥45 | 16~24 | ≤2.0 | ≥50 | ≥65 |
RN445-1 phenolic epoxy polyimide mica tape | 0.13 | ≥70 | ≤10 | ~ | ≥40 | ≥30 |
RN446-1 phenolic epoxy polyimide mica tape | 0.14 | ≥37 | 25~32 | ≤4.0 | ≥40 | ≥65 |
RN446-1B phenolic epoxy polyimide mica tape | 0.11 | ≥45 | 16~24 | ≤1.5 | ≥40 | ≥65 |
RN446-1C epoxy-TMA polyester film mica tape | 0.14 | ≥38 | 28~35 | ≤2.0 | ≥55 | ≥65 |
RN446-1D epoxy polyester film mica tape | 0.09 | ≥55 | 8~14 | ≤2.0 | ≥50 | ≥35 |
RN446-1P phenolic epoxy polyester film mica tape | 0.12 | ≥45 | 29~39 | ≤3.0 | ≥35 | ≥65 |
RN446-1S phenolic epoxy polyester film mica tape | 0.10 | ≥50 | 5~12 | ≤1.2 | | ≥40 |
RN447-1 epoxy mica tape | 0.18 | ≥45 | 25-32 | ≤1.5 | ≥50 | ≥60 |
application and characteristics
1, it is used for reeling on the coil of electrical machinery.
2, has a thin insulation thickness and excellent electrical and mechanical strength.
3, coil with the electrical insulation mica tape single layer wrapping can continute the normal circuit operating at high temperature.
electric machine mica tape has been presented above, want more similar products, please click electric machine mica tape,electrical insulation mica tape,electrical equipments mica tape.
Our electric machine mica tape is good in quality and competitive in price. We manufacture electric machine mica tape and supply OEM, ODM service according to your requirement.
If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
